Testing mutual TLS using NodeJS

30.08.2021 — notes, nodejs, security — 1 min read

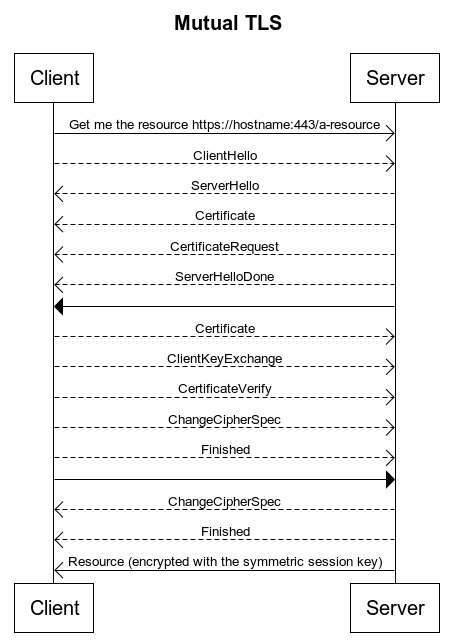

In Mutual TLS both Client and Server have a certificate and both sides authenticate using their public/private key pair. Below are the handshake steps in simplistic way.

Client connects to server
Server presents its TLS certificate
Client verifies the server's certificate
Client presents its TLS certificate
Server verifies the client's certificate
Server grants access
Client and server exchange information over encrypted TLS connection

Below are the steps and commands

Generate Server Certificate
Generate Client Certificate
Test

Generate Server Certificate

Server Details

Organization Name: Bobby Dreamer Inc.,
Organizational Unit Name: Crypto

Generate Certification Authority (CA) certificate for server

Password: super
Common Name(CN): localhost

1openssl req -new -x509 -days 365 -keyout server-ca-key.pem -out server-ca-crt.pem
2
3# Output
4Generating a RSA private key
5....+++++
6.............................................+++++
7writing new private key to 'server-ca-key.pem'
8Enter PEM pass phrase:
9Verifying - Enter PEM pass phrase:
10-----
11You are about to be asked to enter information that will be incorporated
12into your certificate request.
13What you are about to enter is what is called a Distinguished Name or a DN.
14There are quite a few fields but you can leave some blank
15For some fields there will be a default value,
16If you enter '.', the field will be left blank.
17-----
18Country Name (2 letter code) [AU]:IN
19State or Province Name (full name) [Some-State]:TN
20Locality Name (eg, city) []:Chennai
21Organization Name (eg, company) [Internet Widgits Pty Ltd]:Bobby Dreamer Inc.,
22Organizational Unit Name (eg, section) []:Crypto
23Common Name (e.g. server FQDN or YOUR name) []:localhost
24Email Address []:

Generating a private key

1openssl genrsa -out server-key.pem 4096
2
3# Output
4Generating RSA private key, 4096 bit long modulus (2 primes)
5.............................++++
6..............................++++
7e is 65537 (0x010001)

Generate Certificate Signing Request (CSR)

Common Name(CN): server.localhost
do not insert the challenge password

1openssl req -new -sha256 -key server-key.pem -out server-csr.pem
2
3# Output
4You are about to be asked to enter information that will be incorporated
5into your certificate request.
6What you are about to enter is what is called a Distinguished Name or a DN.
7There are quite a few fields but you can leave some blank
8For some fields there will be a default value,
9If you enter '.', the field will be left blank.
10-----
11Country Name (2 letter code) [AU]:IN
12State or Province Name (full name) [Some-State]:TN
13Locality Name (eg, city) []:Chennai
14Organization Name (eg, company) [Internet Widgits Pty Ltd]:Bobby Dreamer Inc.,
15Organizational Unit Name (eg, section) []:Crypto
16Common Name (e.g. server FQDN or YOUR name) []:server.localhost
17Email Address []:
18
19Please enter the following 'extra' attributes
20to be sent with your certificate request
21A challenge password []:
22An optional company name []:

Generate the server certificate from CSR

Type in the CA Password:super

1openssl x509 -req -days 365 -in server-csr.pem -CA server-ca-crt.pem -CAkey server-ca-key.pem -CAcreateserial -out server-crt.pem
2
3# Output
4Signature ok
5subject=C = IN, ST = TN, L = Chennai, O = "Bobby Dreamer Inc., ", OU = Crypto, CN = server.localhost
6Getting CA Private Key
7Enter pass phrase for server-ca-key.pem:

Verify certificate signature

Using the below command you can verify the certificate signature against the CA

1openssl verify -CAfile server-ca-crt.pem server-crt.pem
2
3# Output
4server-crt.pem: OK

Generate Client Certificate

Client details

Organization Name: Browsers Inc.,
Organizational Unit Name: Security

Generate Certification Authority (CA) certificate for client

Password: client
Common Name(CN): browser.com

1openssl req -new -x509 -days 365 -keyout client-ca-key.pem -out client-ca-crt.pem
2
3# Output
4Generating a RSA private key
5......+++++
6............+++++
7writing new private key to 'client-ca-key.pem'
8Enter PEM pass phrase:
9Verifying - Enter PEM pass phrase:
10-----
11You are about to be asked to enter information that will be incorporated
12into your certificate request.
13What you are about to enter is what is called a Distinguished Name or a DN.
14There are quite a few fields but you can leave some blank
15For some fields there will be a default value,
16If you enter '.', the field will be left blank.
17-----
18Country Name (2 letter code) [AU]:IN
19State or Province Name (full name) [Some-State]:TN
20Locality Name (eg, city) []:Chennai
21Organization Name (eg, company) [Internet Widgits Pty Ltd]:Browsers Inc.,
22Organizational Unit Name (eg, section) []:Security
23Common Name (e.g. server FQDN or YOUR name) []:browser.com
24Email Address []:

Generate a private key

1openssl genrsa -out client-key.pem 4096
2
3# Output
4Generating RSA private key, 4096 bit long modulus (2 primes)
5...............................................................................................................................++++
6..............................++++
7e is 65537 (0x010001)

Generate Certificate Signing Request (CSR)

Common Name(CN): client.browser.com
do not insert the challenge password

1openssl req -new -sha256 -key client-key.pem -out client-csr.pem
2
3# Output
4You are about to be asked to enter information that will be incorporated
5into your certificate request.
6What you are about to enter is what is called a Distinguished Name or a DN.
7There are quite a few fields but you can leave some blank
8For some fields there will be a default value,
9If you enter '.', the field will be left blank.
10-----
11Country Name (2 letter code) [AU]:IN
12State or Province Name (full name) [Some-State]:TN
13Locality Name (eg, city) []:Chennai
14Organization Name (eg, company) [Internet Widgits Pty Ltd]:Browsers Inc.,
15Organizational Unit Name (eg, section) []:Security
16Common Name (e.g. server FQDN or YOUR name) []:client.browser.com
17Email Address []:
18
19Please enter the following 'extra' attributes
20to be sent with your certificate request
21A challenge password []:
22An optional company name []:

Generate client certificate from CSR

Type in the CA Password:client

1openssl x509 -req -days 365 -in client-csr.pem -CA client-ca-crt.pem -CAkey client-ca-key.pem -CAcreateserial -out client-crt.pem
2
3# Output
4Signature ok
5subject=C = IN, ST = TN, L = Chennai, O = "Browsers Inc.,", OU = Security, CN = client.browser.com
6Getting CA Private Key
7Enter pass phrase for client-ca-key.pem:

Verify certificate signature

1openssl verify -CAfile client-ca-crt.pem client-crt.pem
2
3# Output
4client-crt.pem: OK

Test

Code is available here in Github

Start the server.js script node server.js
In another terminal window, start the node client.js

Errors you might get

1D:\BigData\14.Nodejs\17.Certificates\b.client-server_certificate2>node client.js
2TLS Socket ERROR (Error: getaddrinfo ENOTFOUND server.localhost)

Solution

In Windows, go to C:\Windows\System32\drivers\etc

Backup the existing hosts file
Edit the file and add the below two lines

1127.0.0.1 server.localhost
2127.0.0.1 client.browser.com

It should look like below

Rerun the client script node client.js

1D:\BigData\14.Nodejs\17.Certificates\b.client-server_certificate2>node client.js
2TLS Connection established successfully!
3Response statusCode:  200
4Response headers:  {
5  date: 'Mon, 30 Aug 2021 15:25:24 GMT',
6  connection: 'close',
7  'transfer-encoding': 'chunked'
8}
9Server Host Name: server.localhost
10Received message: OK!
11
12TLS Connection closed!

In the server side, you will get response like below,

1D:\BigData\14.Nodejs\17.Certificates\b.client-server_certificate2>node server.js
2Mon Aug 30 2021 20:55:23 GMT+0530 (India Standard Time) ::ffff:127.0.0.1 GET /

CURL

Tried to connect to server using CURL it did not work. Did not attempt to do any further investigating as it looks like another whole subject to learn.

1curl -k https://127.0.0.1:8888 -v --cacert ./certs/server-ca-crt.pem --key ./certs/client-key.pem --cert ./certs/client-crt.pem
2
3# Output
4* Rebuilt URL to: https://127.0.0.1:8888/
5*   Trying 127.0.0.1...
6* TCP_NODELAY set
7* Connected to 127.0.0.1 (127.0.0.1) port 8888 (#0)
8* schannel: SSL/TLS connection with 127.0.0.1 port 8888 (step 1/3)
9* schannel: disabled server certificate revocation checks
10* schannel: verifyhost setting prevents Schannel from comparing the supplied target name with the subject names in server certificates.
11* schannel: using IP address, SNI is not supported by OS.
12* schannel: sending initial handshake data: sending 153 bytes...
13* schannel: sent initial handshake data: sent 153 bytes
14* schannel: SSL/TLS connection with 127.0.0.1 port 8888 (step 2/3)
15* schannel: failed to receive handshake, need more data
16* schannel: SSL/TLS connection with 127.0.0.1 port 8888 (step 2/3)
17* schannel: encrypted data got 1970
18* schannel: encrypted data buffer: offset 1970 length 4096
19* schannel: a client certificate has been requested
20* schannel: SSL/TLS connection with 127.0.0.1 port 8888 (step 2/3)
21* schannel: encrypted data buffer: offset 1970 length 4096
22* schannel: sending next handshake data: sending 100 bytes...
23* schannel: SSL/TLS connection with 127.0.0.1 port 8888 (step 2/3)
24* schannel: encrypted data got 7
25* schannel: encrypted data buffer: offset 7 length 4096
26* schannel: next InitializeSecurityContext failed: SEC_E_ILLEGAL_MESSAGE (0x80090326) - This error usually occurs when a fatal SSL/TLS alert is received (e.g. handshake failed). More detail may be available in the Windows System event log.
27* Closing connection 0
28* schannel: shutting down SSL/TLS connection with 127.0.0.1 port 8888
29* schannel: clear security context handle
30curl: (35) schannel: next InitializeSecurityContext failed: SEC_E_ILLEGAL_MESSAGE (0x80090326) - This error usually occurs when a fatal SSL/TLS alert is received (e.g. handshake failed). More detail may be available in the Windows System event log.
